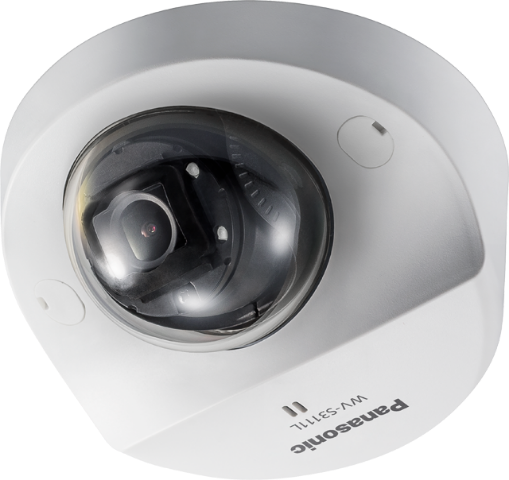

WV-S3111L iA (intelligent Auto) H.265 Compact IP Dome,HD, Super Dynamic IR-LED
iPRO IP Camera Warranty 5 Years/Carry In
• HD 720p 60 fps
• iA (intelligent Auto)
• Super Dynamic 134dB
• Color night vision (0.0013 to 0.02 lx)
• H.265 Smart Coding
• Built-in IR LED
• Corridor modeHD / 60 fps Compact Dome Network Camera is based on the concept of "i-PRO EXTREME".
Compact size HD Dome Network Camera
The compact body with the diameter of 104mm and the height of 51mm blends in to walls and ceilings.
Even when installing the camera in a store/shop with atmosphere, the installation can be made without destroying the atmosphere.Extreme image quality allows evidence to be captured even under challenging conditions
- Auto Shutter speed control for fast moving objects with Intelligent Auto
- Sharp and clear images of a walking person day & night
- Outstanding low light performance in true color with low noise for night time applications
- Super Dynamic 134dB for backlit situations on entrance
- Built-in IR LED to produce a clear monochrome image in 0 lux conditions with 15 m (49 feet) irradiation distance
Extreme H.265 compression with new Smart Coding- Longer recording and less storage compared to any H.264 based compression techniques
- New self-learning ROI* encoding (Auto VIQS) detects movement within the image and compresses the areas with little motion in order to reduce transmitted data while maintaining the quality of the image
- New “Smart Facial Coding” adds more bandwidth reduction for ID camera applications mainly capturing faces
Indoor / Outdoor | Indoor | |
Image sensor | 1/3 CMOS | |
Min.Illumination Color (lx) | 0.02 | |
Min. Illumination B/W (lx) | 0.01 / 0 (w/IR-LED) | |
Maximum Resolution | HD (720p / 1,280x 960) | |
Maximum FPS | 60 | |
Super Dynamic | Yes | |
Image compensation | Adaptive Black Stretch, Back Light Compensation (BLC), Fog compensation, High light Compensation (HLC), Digital Noise Reduction | |
Color/BW | ICR | |
ABF(Auto back focus) /Auto Focus Assist | - | |
IR LED | Yes | |
Image Stabilizer | - | |
Corridor Mode | Yes | |
Privacy Zone | 8 | |
iA (Intelligent Auto) | Yes | |
Intelligent VMD (i-VMD) | Type4 | |
Focal length | f=2.8mm {1/8 inches}, F2.3 | |
Zoom ratio | 1x | |
Angular field of view (16:9) | H: 97 deg. V: 54 deg. | |
Angular field of view (4:3) | H: 97 deg. V: 72 deg. | |
Panning Range | -45 - +45 deg. | |
Tilting Range | 0 - +90 deg. | |
Network IF | 10Base-T, 100Base-TX, RJ45 connector | |
Video Codec | H.265, H.264, JPEG | |
Transmission mode (H.265/H.264) | Variable bit rate, Frame rate, Best effort | |
Smart Coding | Yes | |
Audio Support | Yes | |
Built-in microphone | Yes | |
Microphone/ Line Input | - | |
Audio Output | - | |
SD memory Card Slot | microSD | |
External I/O Terminals | - | |
Ambient Operating Humidity | 10-100 | |
Vandal Resistant | - | |
Water and Dust Resistance | - | |
ClearSight Coating / Rain Wash Coating | - | |
Dehumidification device | - | |
Temperature (degree, Celsius) | Max 40 |
|
Min | 0 | |
Temperature (degree, Fahrenheit) | Max 104 |
|
Min | 32 | |
Power Source | PoE | |
SSL device certificate | Yes | |
ONVIF Profile | S, G |
